巖金礦專用移動式沙金設備

【巖金礦專用移動式沙金設備簡介】
本套設備為移動式沙金設備，適用于巖金礦選沙金使用，其優勢如下：
1、重型汽車底盤設計，帶轉向系統、發電機組，可以使用牽引車輛輕松整體移動至工作場地；
2、進料斗下部安裝了振動給料機，防止堵料，并且可以保障均勻供料；
3、精料收集系統采用一臺臥式全自動排礦離心機，進料、排料由PLC電腦全自動控制，操作簡單方便。排廢料管道處增加一汞板溜槽，對廢料里的金進行二次回收。(注：立式離心機因結構原因，只能在水平地面使用，無法應用于移動淘金車)
Introduction
This set of specialized rock mine movable gold separtor,it’s customized using for rock mine material,the advantage:
1.Base plate design from heavy trailer with driving bar and direction system,generator set,it can be easiler moved or transported.
2.The shaking feeder under feed hopper to prevent clogging of material
3.The concentrator sysytem we can horizontal auto discharge concentrator,separating and easy to operate and discharging auto controlled with PLC druing which 2nd time the scrap material’s recovery by amalgamating board slucie.

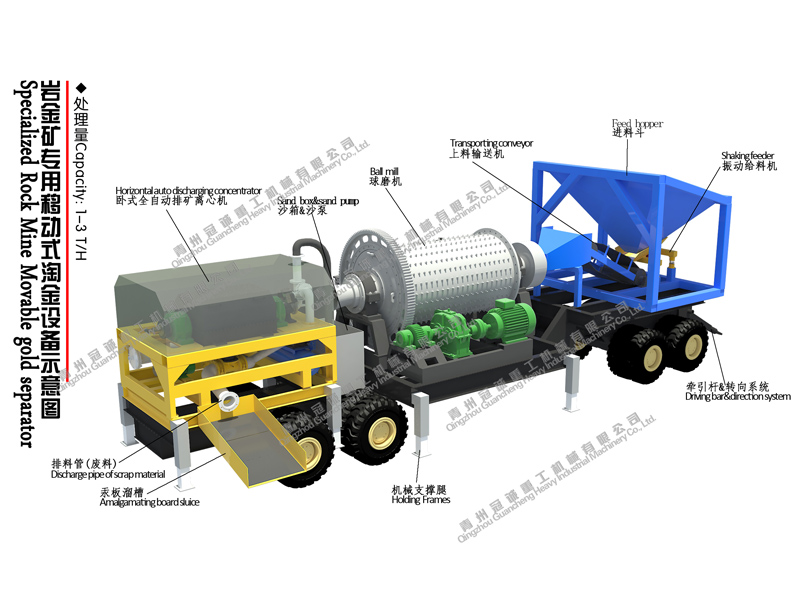

【巖金礦專用移動式沙金設備流程概述】Technical process
原料通過工程車輛送入進料斗中，通過振動給料機均勻給入上料輸送機中，然后送入球磨機內時行球磨，球磨后的物料排入沙箱內，通過沙泵送入離心機內進行精選，精選后的精料會自動排出，廢料通過一條汞板溜槽收尾后，廢料排入廢料區域。
The material getting into feed hopper by excavator or other machines,the the shaking feeder can make material well distributed onto conveyor and then be transporting into ball mill,the getting into horizontal auto discharge concentrator by sand pump in sand box,then concentrate get and scrap material into amalgamating board sluice to be recovered(The horizontal type gold concentrator instead of vertical type which can be working only on ground level provide good performance as a unit of the car)
【巖金礦專用移動式沙金設備技術參數】Detail parameter
處理量：1-3 噸/小時
Capacity：1-3ton/hour
外型尺寸：12.7*4*3.9米（長*寬*高）
Outlet size:12.7*4*3.9m（L*W*H）
底盤長度：10.5米
Length of base plate：10.5m
進料粒度：5mm
Ball mill feeding size：5mm
球磨機型號：900*2600    處理量1T/h   功率：15KW
1200*2400   處理量1-3T/h  功率：30KW
Ball mill:900*2600  capacity:1T/h,power:15KW
       1200*2400 capacity:1-3T/H,power:30kw

離心機型號：60#臥式全自動排礦  功率：6.05KW
Horizontal auto discharge concentrator:60# power:6.05KW
發電機組：配備75KW發電機組1臺
Generator set:75kw 1set
牽引速度：建議不超過15Km/h
Driving speed:advise to be less than 15km/h
